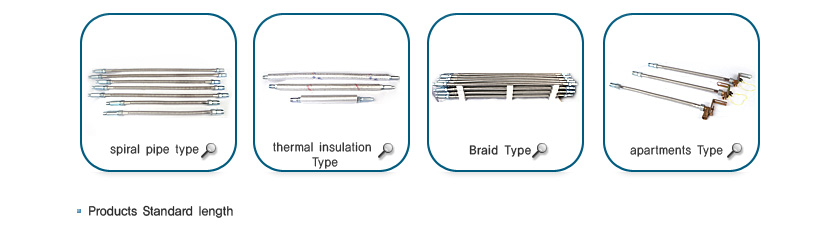

spiral pipe type |
The tube is made of stainless steel, making it highly corrosion resistance and one of the most economical products. |
thermal insulation Type |
This product is made by covering the spiral type with insulation material (KS), making installation convenient since separate insulation work is not necessary. |
Braid Type |
This product is made by covering the tube with braid, making it an outstanding product with aesthetic outer appearance that can withstand high pressure. |

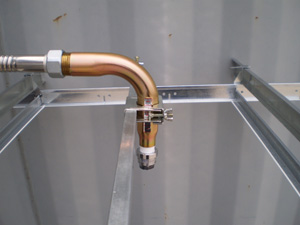

apartments Type |
It is a product that is convenient to use in locations with low ceiling space in apartments or general buildings as the connection section of the sprinkler head is in the shape of an elbow. |
|
|
 |
|
|
| |
Types(model) |
Length(mm) |
(SPU) |
500, 700, 1000, 1200, 1500, 1800, 2000, 2500, 3000 |
apartments type |
braided type |
|
|
|
|
| |
| Lengths other than the standard sizes can be manufactured in accordance with the order of the clients |
|
|
|
 |
| |
 |

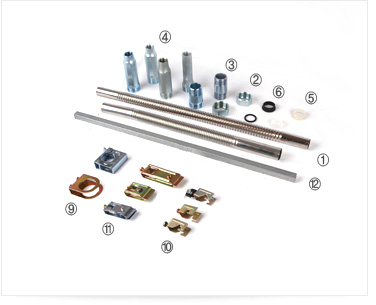

No |
Component |
Material
|
1 |
Flexible Tube |
STS304 |
2 |
nut |
S20C |
3 |
Nipple |
S16C(1")
(PT, NPT, BSP screw) |
4 |
Reducer |
S16C(1/2",3/4")
(PT,NPT,BSP screw) |
5 |
Insulation Ling |
Nylon66 |
6 |
Gasket |
NBR |
7 |
Braid |
STS304 |
8 |
Clamp Rings |
STS304 |
9 |

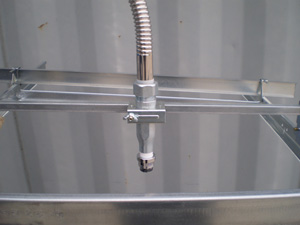

Bracket(large) |
SS41 |
10 |
Bracket(small) |
SS41 |
11 |
T-BAR Bracket |
SS41 |
12 |
Square Bar |
GI PIPE(SGCC) |
13 |
apartments Bracket |
SS41 |
|
|
|
|
 |
|
| |
| |
|
|
|
